Details

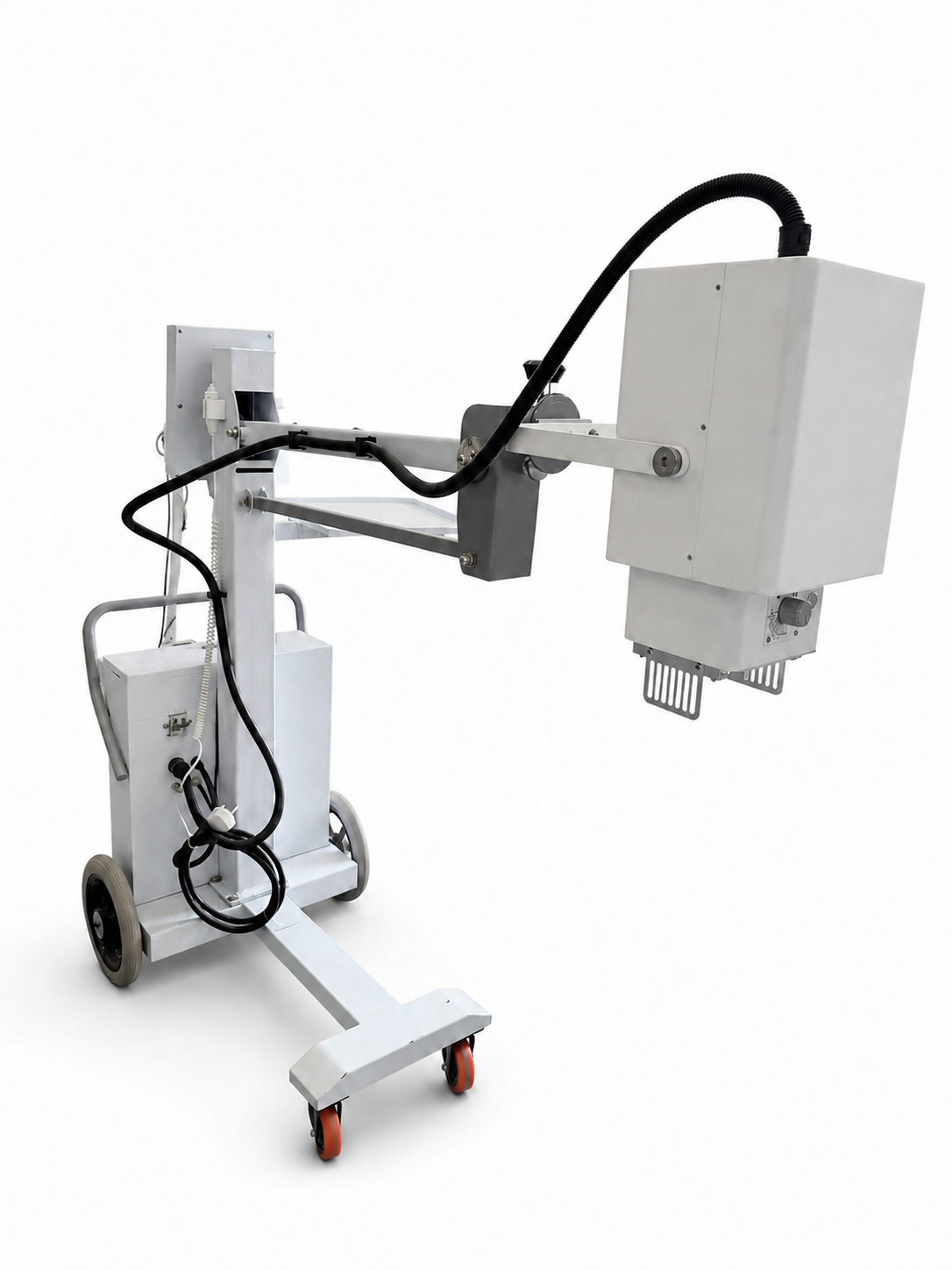

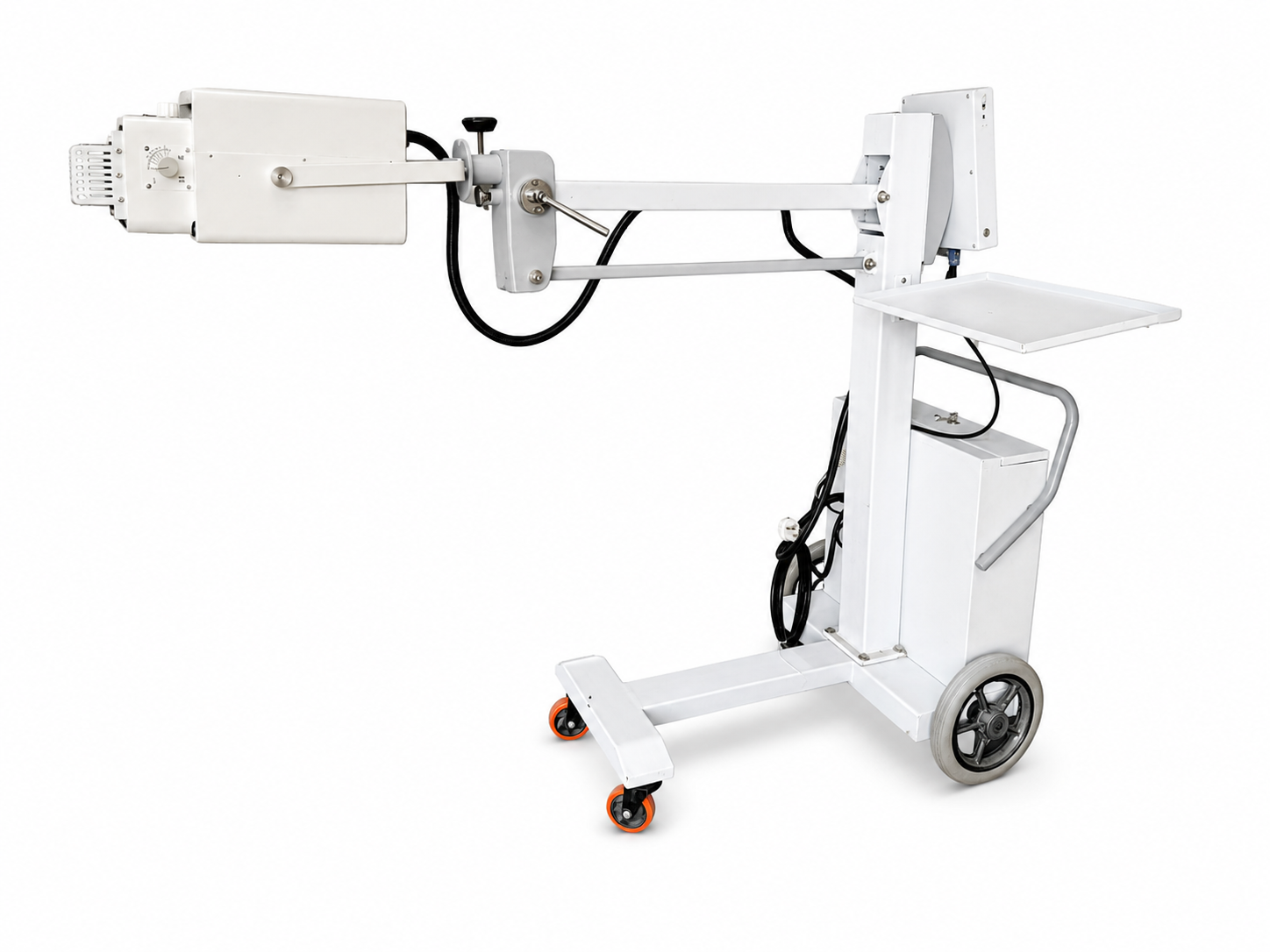

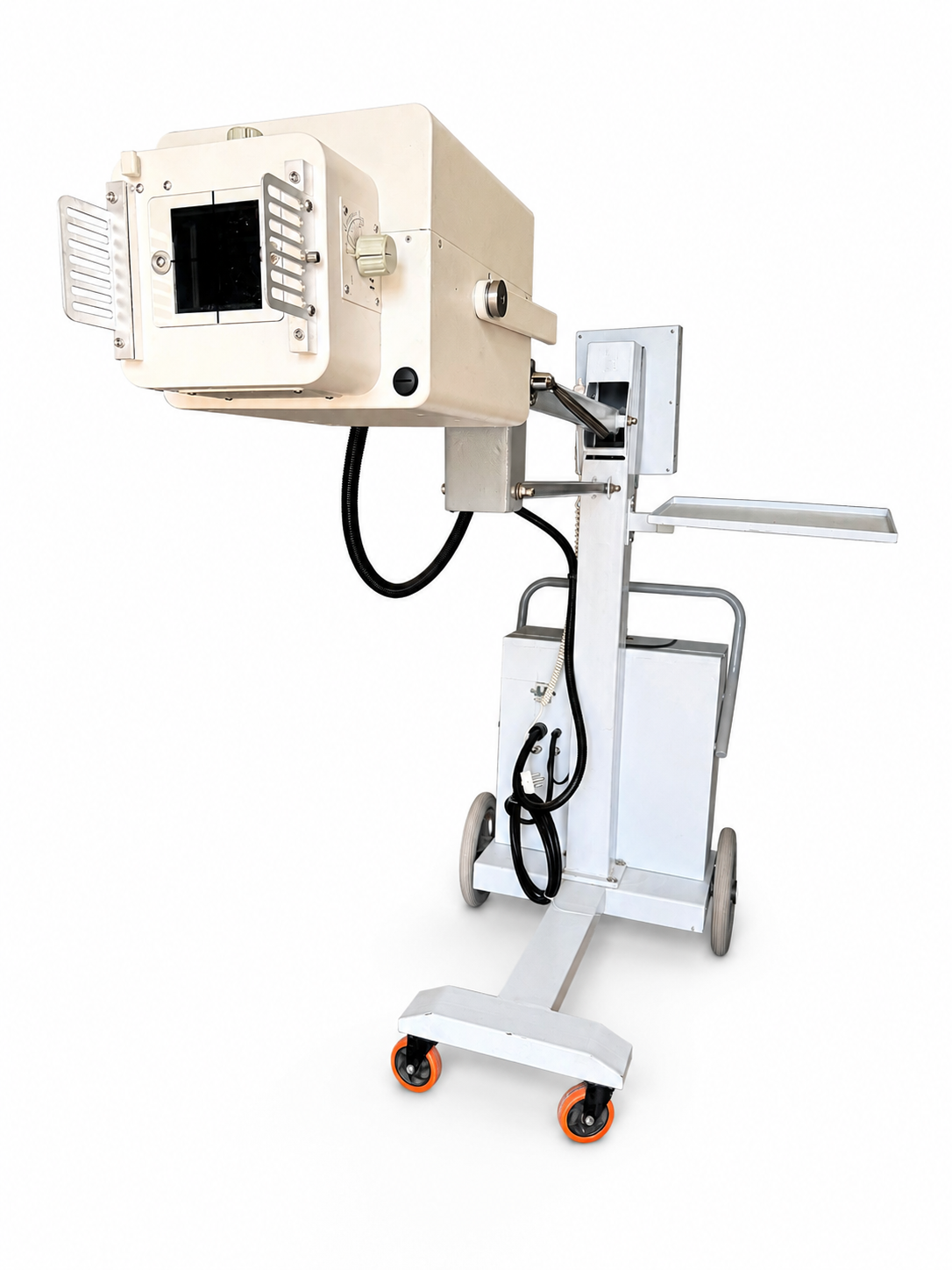

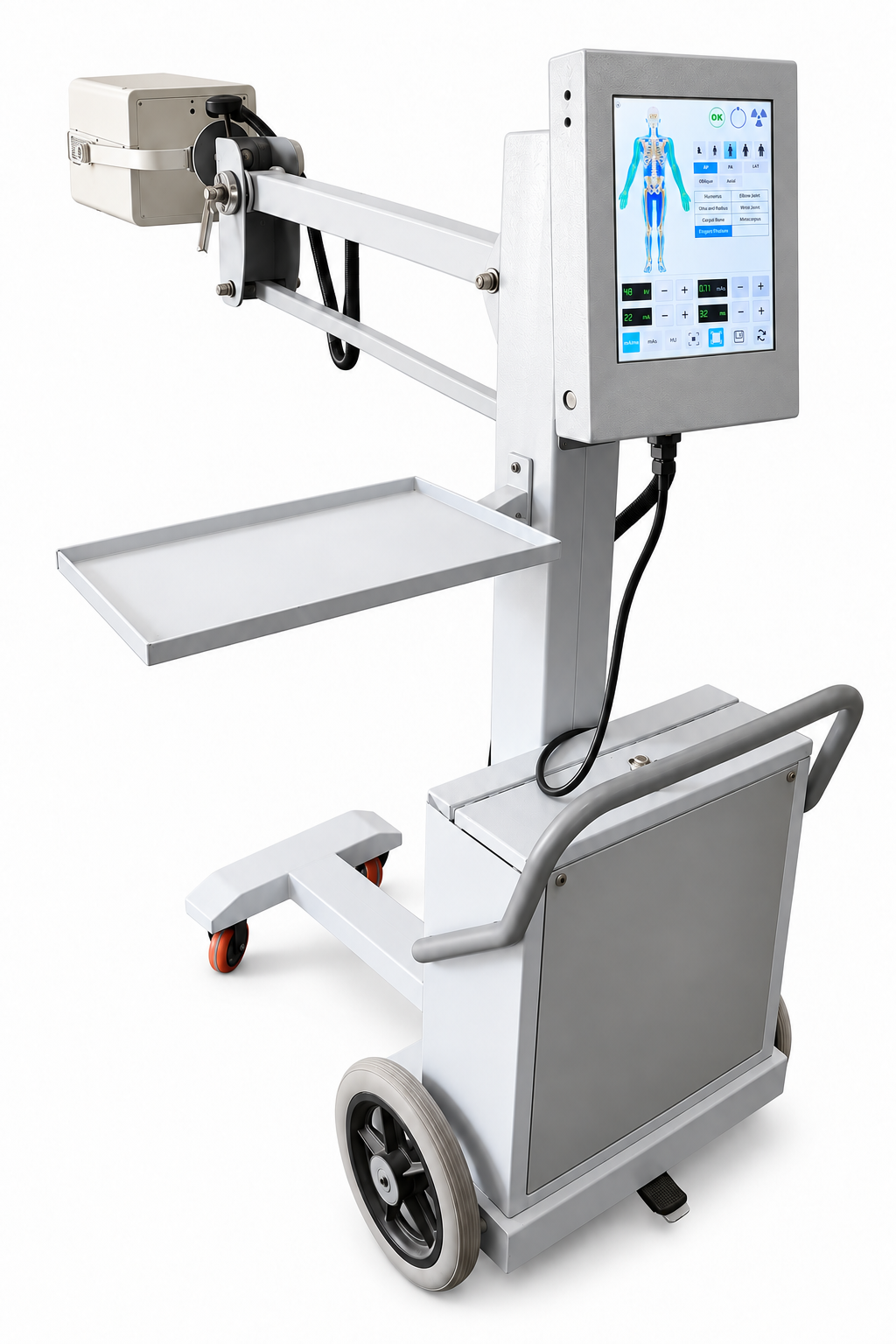

STARNUKE-HF150 is a high-frequency Mobile X-Ray Machine designed for general radiography applications. Built with a 6.3 kW high-frequency X-ray generator, the system delivers stable radiographic performance with an X-ray beam energy range of 40–125 kV and tube current range of 10–150 mA. It is suitable for hospitals, diagnostic centers, clinics, and mobile radiography setups requiring reliable imaging performance in a compact mobile design.
The machine is supplied with essential operating components including Tube Head, Operational Panel, Exposure Hand Switch, and Laptop Stand, supporting convenient operation and smooth clinical workflow.
Key Features
- High Frequency X-Ray Generator
Equipped with a 6.3 kW high-frequency generator for stable and efficient X-ray output.- Wide kV Range
Supports 40–125 kV, allowing flexibility for different general radiography examinations.- Adjustable Tube Current
Provides 10–150 mA tube current range for different exposure requirements.- Dual Focal Spot Design
Comes with 1.00 mm small focal spot and 2.00 mm large focal spot for imaging flexibility.- Mobile and User-Friendly Design
Includes an operational panel, tube head, exposure hand switch, and laptop stand for convenient radiographic operation.Technical Specifications
Feature Detail / Value Model Name STARNUKE-HF150 Application / Usage General Radiography X-Ray Generator Type High Frequency X-Ray Generator Power 6.3 kW X-Ray Beam Energy 40–125 kV X-Ray Tube Current 10–150 mA Exposure Time Range 1–10000 ms Focal Spot Size Small 1.00 mm Focal Spot Size Large 2.00 mm Max. Permissible mAs 1–320 mAs Tube Heat Storage Capacity 30 kJ Anode Type Stationary SID 100 cm Total Filtration 2.8 mm Al Power Requirements 220–240 VAC, 50 Hz, Single Phase Applications
- General radiography
- Chest X-ray imaging
- Orthopedic imaging
- Routine diagnostic imaging
- Hospital, clinic, and diagnostic center use
Components Included
- Tube Head
- Operational Panel
- Exposure Hand Switch
- Laptop Stand
Certification & Approvals
STARNUKE-HF150 is supported by multiple quality and regulatory credentials, including CDSCO approved X-ray generator, AERB type approved X-ray device, BIS certification under IS 7620: Part 1: 1986, ISO 13485 certified manufacturing facility, NABL accredited laboratory with ISO 17025:2017 quality management system, and QCI certified OEM status at GeM for Make in India products.
