Details
MODEL : STARNUKE Handheld Portable Dental X-Ray Machine Mini Ray

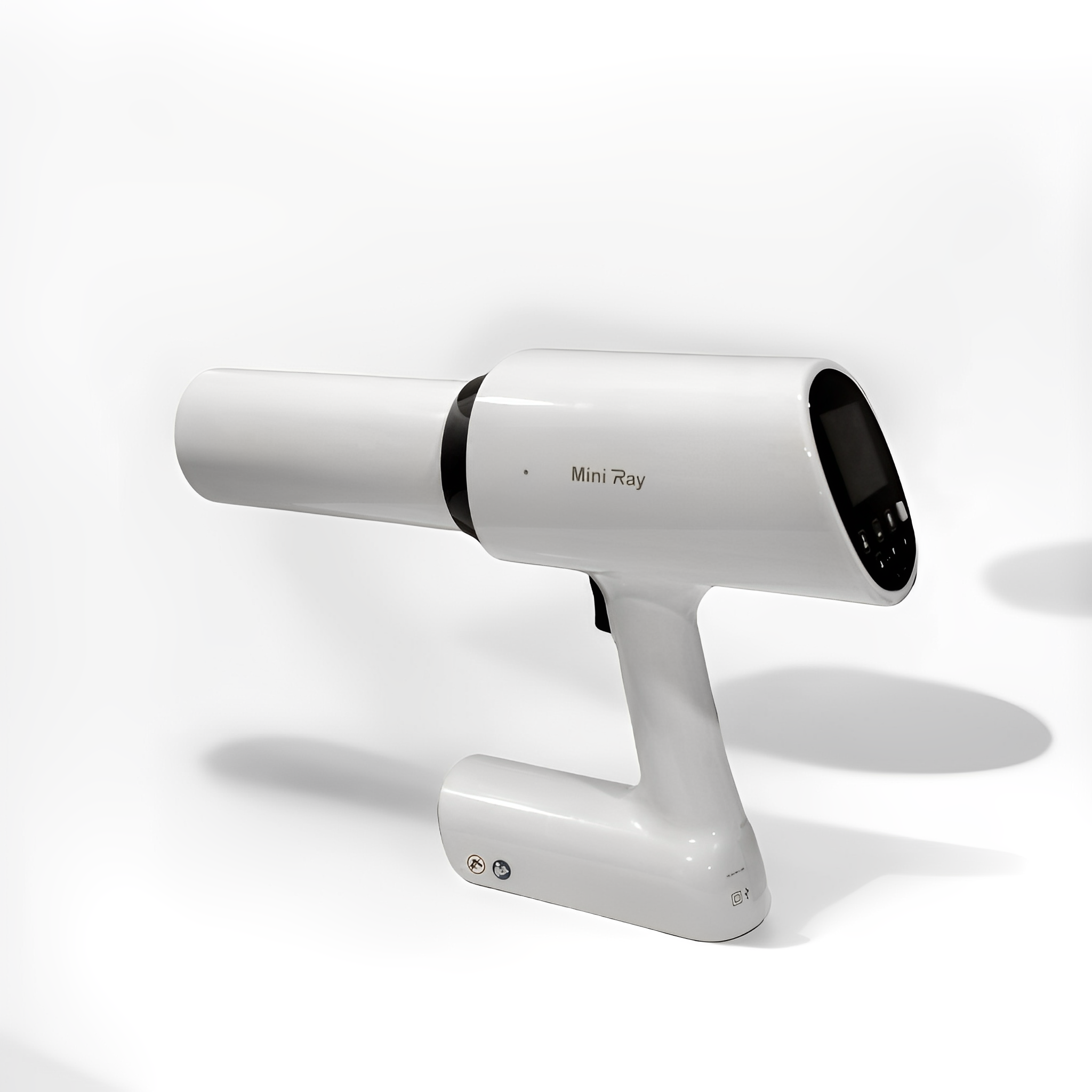

Mini Ray: Portable Handheld Dental X-Ray for Optimal Imaging
The Mini Ray is a high-tech, portable dental X-ray that is hand-held, with unprecedented quality and precision. It is especially manufactured for the working dentist who needs accuracy, portability, and speed on the job. Compact in design, light in weight, highly advanced in its technology, this product fits both dental clinics and mobile practices, assuring high-quality imaging that helps in effective diagnosis.
The Mini Ray Handheld Dental X-Ray Machine combines user-friendly features with high-performance specifications, making excellent imaging possible. With only 2.2 kg, it is lightweight and very easy to handle, hence making its handling quite smooth for any dental environment.
Equipped with a max tube voltage of 70 kV and a max tube current of 2 mA, Mini Ray offers high-resolution images which are believed to be of utmost importance to diagnosis. In addition to having an adjustable exposure time ranging from 0.02 seconds to 2.00 seconds, the practitioner is allowed to optimize image quality, hence taking great care of patient's safety.
Key Features
1. High-Performance Tube Voltage and Current
Operating Voltage: The Mini Ray operates at maximum tube voltage of 70 kV and a maximum tube current of 2 mA for clear, detailed images in various dental applications, from routine examinations up to specialized treatments.2. Lightweight and Ergonomic Design
Weighing only 2.2 kg, the Mini Ray is designed for ease of handling. Compact size enhances mobility; it is thus ideal for both stationary and mobile dental practices.3. Advanced Focus and Filtration
Mini Ray has a 0.4 mm AI focus and *1.8 mm total filtration. This gives high-resolution images without distortion, highly needed to handle dental diagnosis with greater validity.4. Variety in Exposure Time Settings

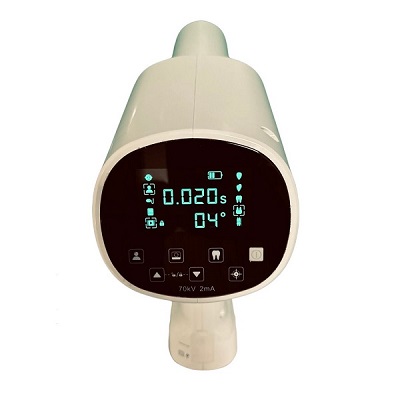

It allows adjustment of the exposure times in a range from 0.02 seconds to 2.00 seconds, enabling practitioners to offer imaging that can be more closely matched to patient needs while balancing optimum image quality with safety.5. High Capacity Battery
2500 mAh (3S) Battery Capacity: This gives ample power for one to work for an extended period without the stress of having to recharge frequently; hence, the Mini Ray is suitable for busy dental clinics and also for mobile operations.6. Precision Anode Target Angle
A 12-degree anode target angle, the Mini Ray allows correct positioning to achieve optimal images with a variety of dental procedures.7. Output Power
Equipped with 140W of output power, Mini Ray guarantees outstanding performances while maintaining high image quality without compromising on speed and reliability.
Applications

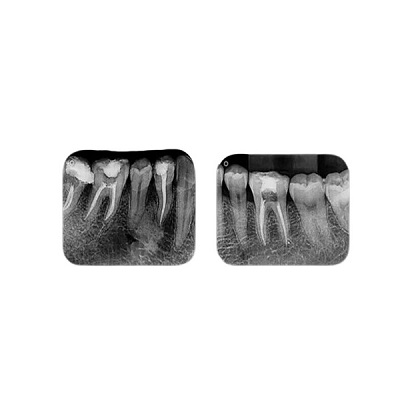

1. General Dental Imaging
Suitable for high-quality images that are viewed in general dental check-ups for diagnosing dental caries, periodontal disease, and all other dental health issues.2. Endodontic Procedures
Ideal for root canal treatments, as it gives very specific views into the anatomy of the root canal system that are indispensable for proper diagnosis and treatment planning.3. Orthodontic Evaluations
To assist the orthodontist in evaluating proper tooth alignment and to plan the best course of action and treatment strategy to correctly brace and align teeth.
4. Pediatric Dentistry
The Mini Ray is ideal for pediatric patients since the dose of radiation is low, with an adjustable setting to further minimize exposure in view of their safety.
Benefits of Using Mini Ray
1. Improved Diagnostic Accuracy
Sharp and clear images from Mini Ray help the dentist reach very accurate diagnoses, avoiding misdiagnosis and enhancing patient outcomes.2. Improved Patient Comfort
Ergonomic design with light construction guarantees comfort for the patient during an X-ray examination; moreover, the adjustable exposure times further minimize the discomfort.3. Efficient Workflow
The operating process of the Mini Ray streamlines dental imaging procedures and provides for faster processing of patients with significant smoothness of practice.4. Reduced Radiation Exposure
The adjustable exposure settings allow one to minimize the radiation doses and hence make the *Mini Ray* much safer for both the patients and dental staff.5. Durable and Reliable Design
It is designed to handle daily demands at the dentist's and, thus, makes it strong and reliable for a performance outcome that may be considered continuous.
For more information, please visit our website or give us a call to order.
