Get the price and delivery time for STARNUKE 4343 DIW Wireless DR System. We deliver across India.
MOQ: 10 units · Lead time: 1 week · Your logo, colours and screen branding

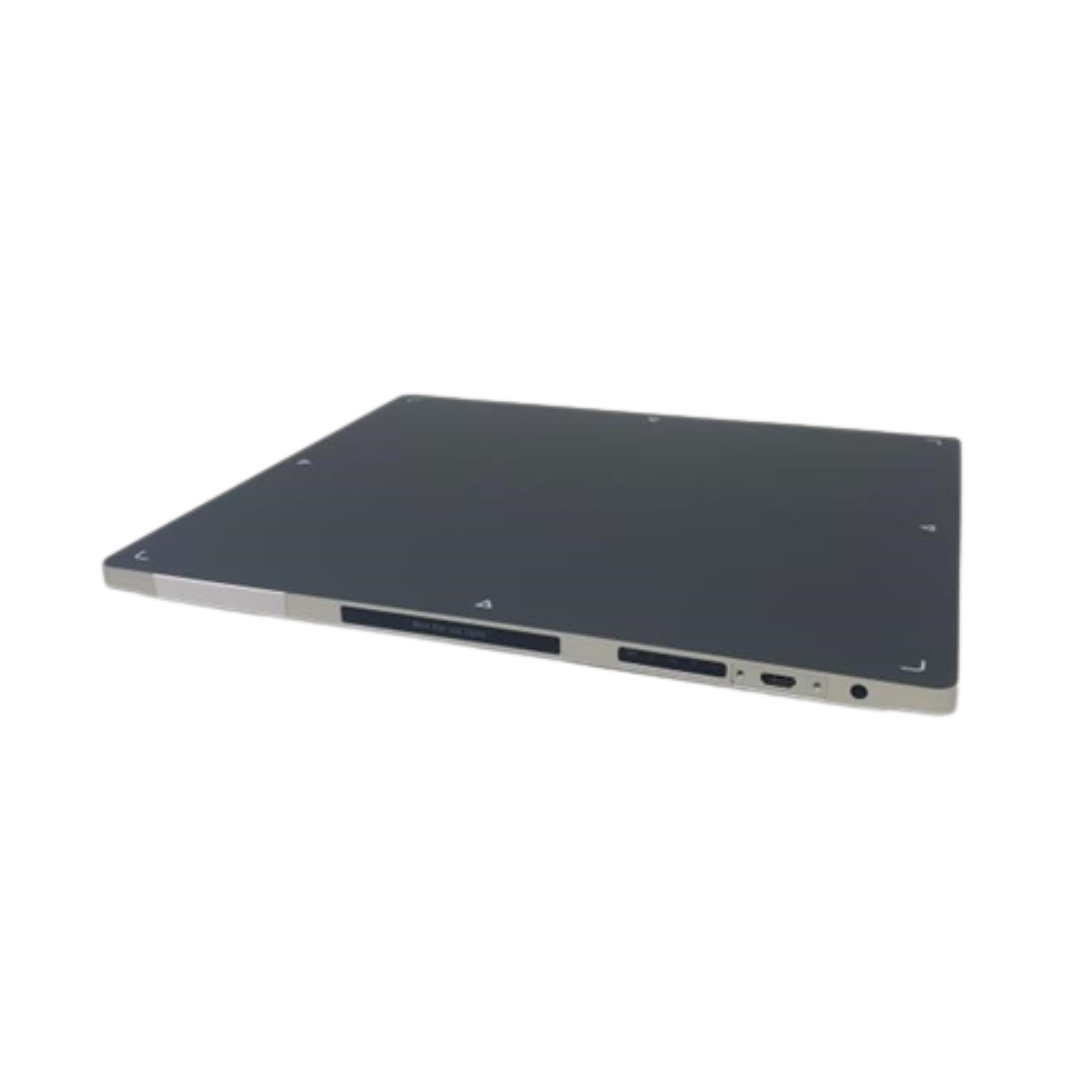

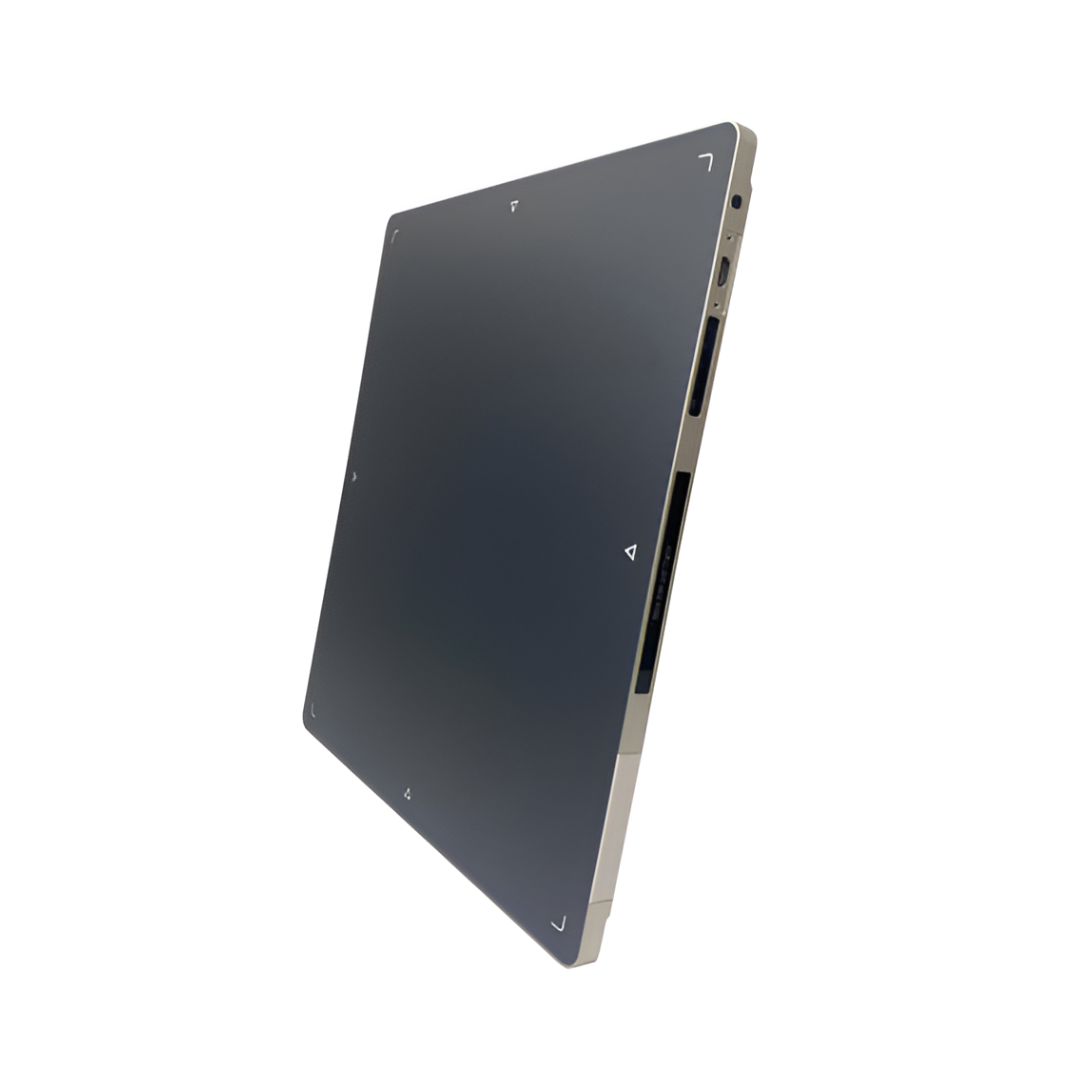

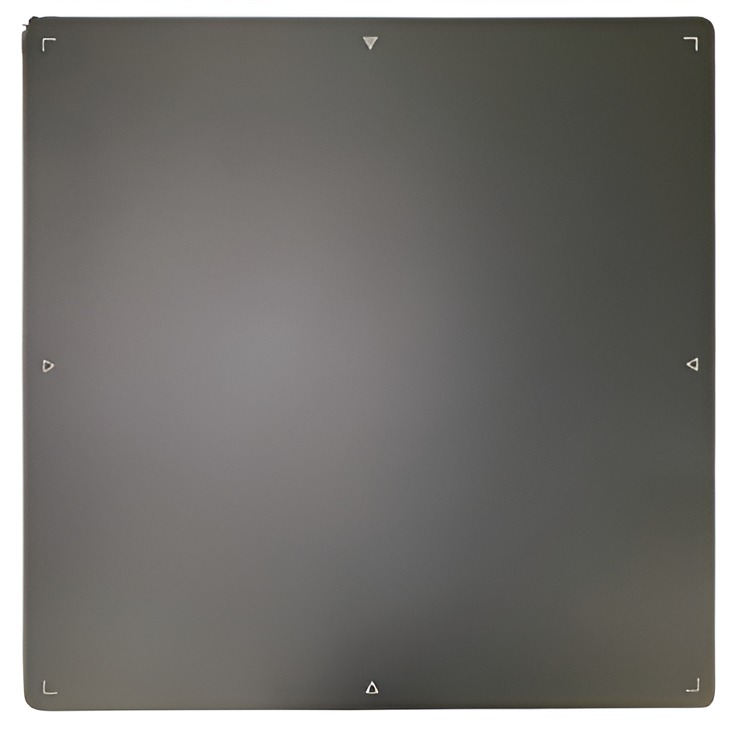

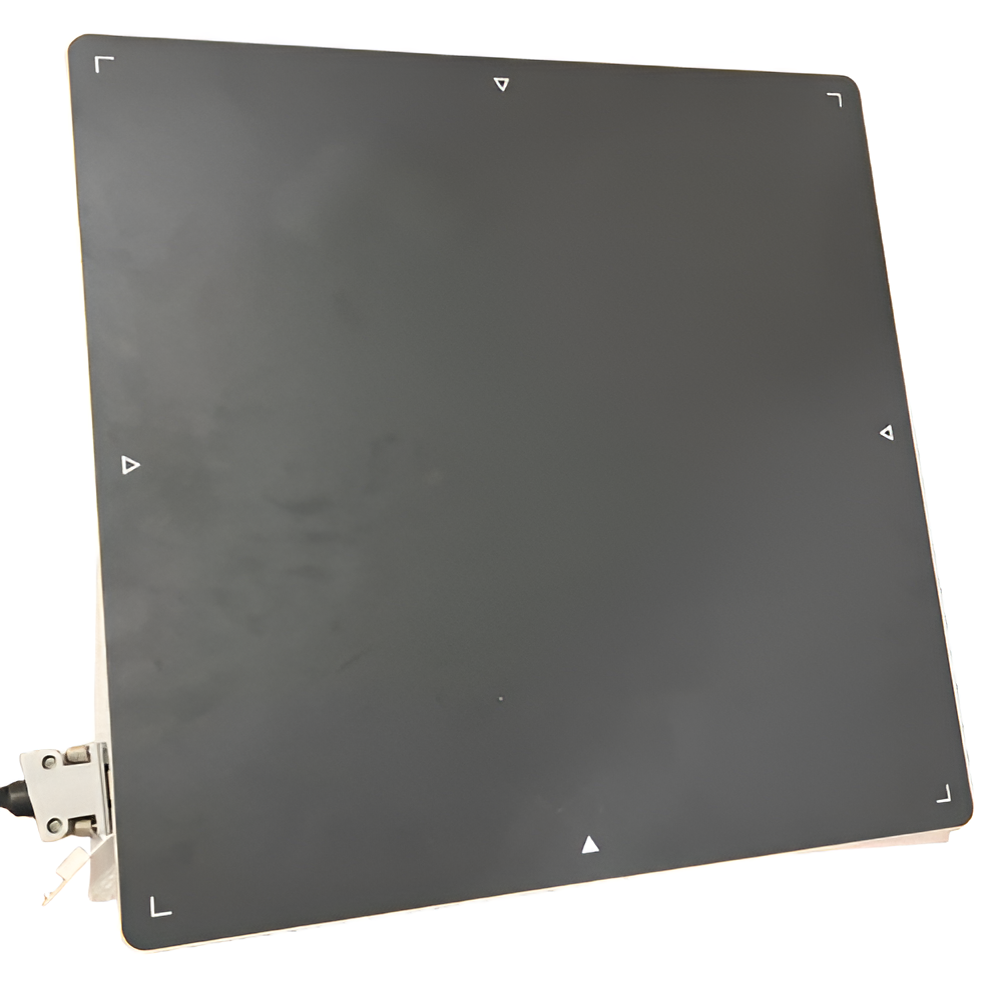

STARNUKE 4343DIW is a 17 × 17-inch flat panel detector (DR system) that works wireless over Wi-Fi or wired over Gigabit Ethernet. It has a CsI scintillator, 140 µm pixels, IP68 water protection and a 12-hour battery, so it suits bedside, mobile and table work. It is CDSCO approved, made in India by STARNUKE, and comes with the CDSCO-approved StarRayinView imaging software.
Technical specifications
| Model | STARNUKE 4343DIW |
|---|---|
| Detector size | 17 × 17 inch |
| Scintillator | CsI:Tl |
| Detector technology | IGZO |
| Pixel matrix | 3072 × 3072 |
| Pixel pitch | 140 µm |
| Spatial resolution | 3.4 lp/mm |
| A/D conversion | 16 bit |
| DQE | 82% at 0.1 lp/mm |
| MTF | 93% at 0.5 lp/mm |
| X-ray energy range | 40–150 kVp |
| Image acquisition time | 2.5 s |
| Image storage | 1000 images |
| Connection | Wi-Fi (802.11ac, 2.4/5 GHz) or Gigabit Ethernet |
| Battery standby | 12 hours |
| Adaptor | Input 100–240 V, 50/60 Hz; output 15 V, 4 A |
| Water resistance | IP68 |
| Load bearing | 200 kg over full surface, 100 kg point load |
| Drop test | 50 cm |
| Operating conditions | 10–40 °C, 20–75% humidity |
| Mobile app | Android app for mobile operation and viewing |
| Software | StarRayinView (CDSCO approved) |
| In the box | Detector, battery, battery charger |
| Approval | CDSCO approved |
| Made in | India |
Where it is used
- Bedside and mobile radiography: wards, ICUs and emergency.
- General radiography: chest, spine, abdomen and extremities; the square 17 × 17 area fits large chests.
- Upgrade from film or CR: fit a digital detector to your existing X-ray machine.
- Settings: hospitals, diagnostic centres, mobile X-ray and camps.
Other detectors and DR packages
A wired option is the 3543DI. Ready-made digital packages include MIN-X Pro with DR, HF100 with DR and HF300 X-ray room with DR.
What you get from STARNUKE
- Delivery anywhere in India
- Installation, software set-up and training
- Works with STARNUKE X-ray machines; ask us about compatibility with your existing machine
- After-sales service from the manufacturer
Frequently asked questions
Is the 4343DIW CDSCO approved?
Yes. The STARNUKE 4343DIW flat panel detector and the StarRayinView software are CDSCO approved.
Can I upgrade from CR to DR with it?
Yes. The 4343DIW replaces CR cassettes and the reader. It works over a 40–150 kVp range; tell us your X-ray machine model and we will confirm compatibility.
Wireless or wired?
Both. It connects over Wi-Fi (802.11ac) or Gigabit Ethernet.
How long does the battery last?
About 12 hours on standby. A battery charger is supplied.
What is the price of the 4343DIW wireless DR system in India?
The price depends on the configuration (detector, software and workstation). Use the "Get price (India)" button on this page and our team will send a quotation.
