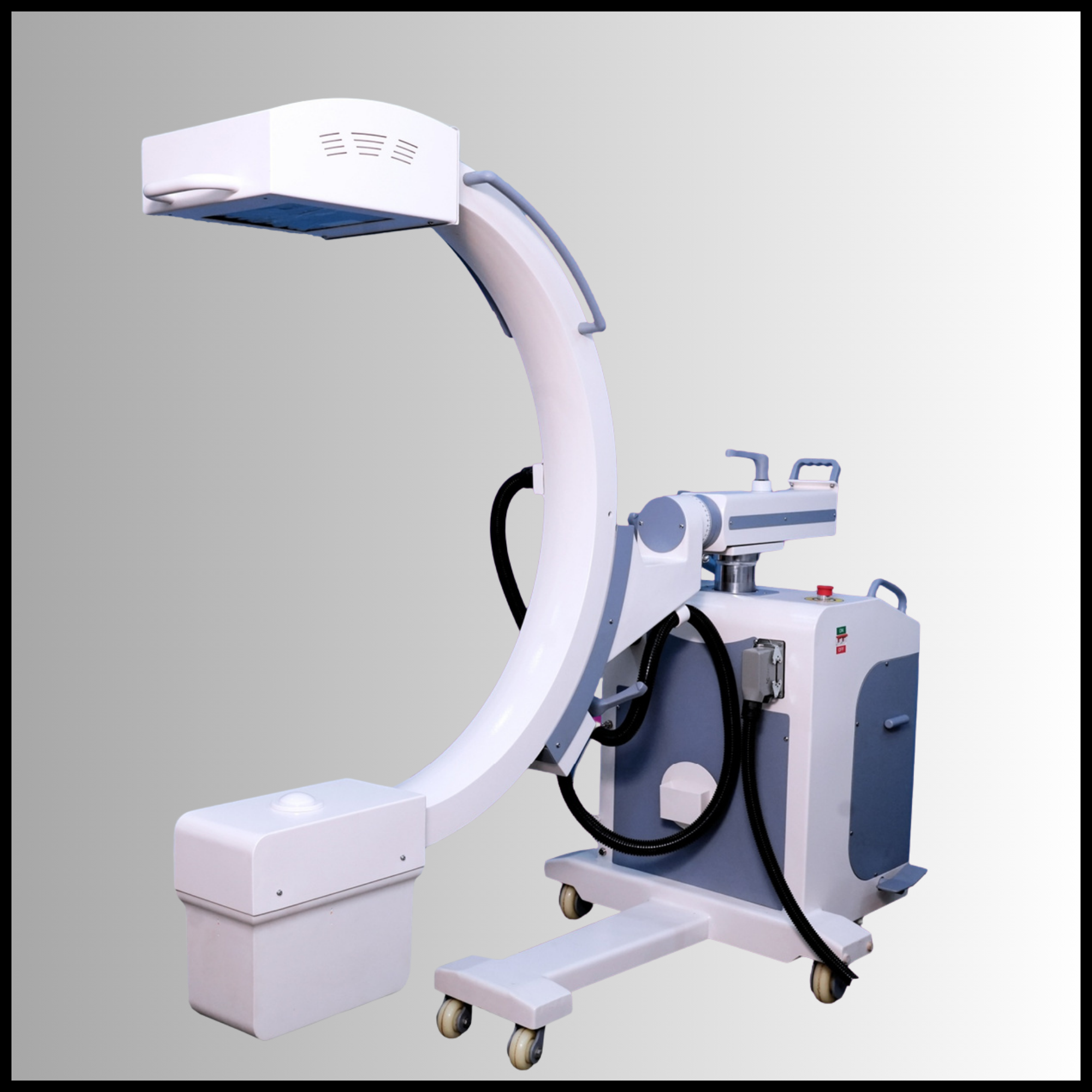

STAR-C 5.0 C-Arm Machine – Advanced Radiographic and Fluoroscopic System
The STAR-C 5.0 C-Arm Machine is an innovative, high-performance imaging solution designed for both radiographic and fluoroscopic applications. Engineered for medical professionals, this 5KW system offers exceptional image quality and reliability, making it ideal for diagnostic and interventional procedures.
Key Features:
- High Output Power (5KW): Provides reliable and consistent imaging for complex medical procedures.
- Wide kV Range (40-125 kV): Ensures flexibility and precision in various imaging requirements.
- Adjustable mA Range: RAD mode: 1-100 mA; Continuous Fluoro: 0.2-10 mA; Pulse Fluoro: 0.2-100 mA.
- Exposure Time Range: RAD mode: 5ms to 10000ms; Fluoroscopy: Max 5 minutes for efficient procedure management.
- Monoblock Performance: Equipped with the XD56 X-ray tube with a nominal focal spot size of 0.3mm/0.6mm, ensuring high-quality, clear images with minimal distortion.
- Advanced Filament Technology: Operates at a frequency of 20KHz ± 2KHz with a maximum filament current of 5A, enhancing performance and longevity.
- Rotary Anode Design: 10-degree target angle and 150 KJ anode heat storage capacity ensure sustained performance during long procedures.
Versatile and Reliable Imaging System: The STAR-C 5.0 C-Arm machine combines reliability and precision for efficient diagnostic procedures. Its versatile technique selection options, such as kV-mA-ms, continuous and pulsed fluoroscopy, allow for customizable imaging to meet various clinical needs.
Perfect for hospitals, diagnostic centers, and medical practices, the STAR-C 5.0 enhances the accuracy and efficiency of patient diagnostics, helping professionals make informed decisions in real-time.
With its reliable performance and user-friendly interface, the STAR-C 5.0 is your go-to solution for precise imaging in radiographic and fluoroscopic applications. Visit www.starnuke.net for more details!
