300 mA Fixed X Ray Machine STARNUKE-HF300 20 KW High Frequency

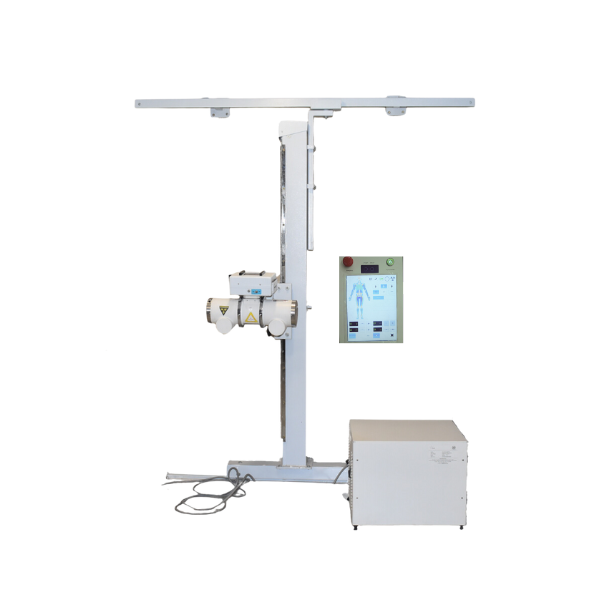

The STARNUKE HF300 300 mA Fixed X-Ray Machine is fully representative of the most advanced technology in the line of medical imaging. Being a high-frequency X-ray machine, this unit is designed to achieve superior performance, reliability, and ease of use, thus responding to the demands of present healthcare facilities. The STARNUKE HF300 is an indispensable tool in any medical imaging department because of its commitment to excellence in clinical performance and economic value.
Technical Specifications:
- Maximum output power: 20 kW
- Inverter frequency: 40 kHz
- Monoblock kV range: 40 kV - 125 kV
- Maximum mA: 320 mA
- mAs 1 to 320
Key Features
The STARNUKE HF300 has innovative features built into it, which facilitate usability along with increasing operational efficiency:
1. It comprises a single-integrated console system with the control panel integrating all functions into one user-friendly interface, which makes operation easy and reduces the learning curve for new users.

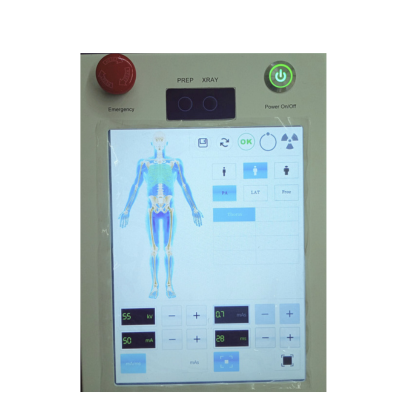

2. Digital Display: The digital display displays the X-ray parameters in real time, along with kV and mAs values set by the operator. This feature helps the operators to monitor the adjustments clearly and effectively in providing precise exposures.
3. mA station selection: It allows choosing the best option of mA station in order to suit the imaging requirements; this gives variety and flexibility to the machine regarding a number of procedures.
4. Increase/decrease switches for mA, kV and mAs: They increase/decrease intuitively for fast variations of the parameters; this gives operators an easy time when adjusting settings on the go.
Applications
- General radiography: this equipment is good to go for general diagnostic images. Hence, it produces very good results in chest, limb, and skull imaging.
- Orthopedic Imaging: This device is good for diagnosing muscular-skeletal disorder, fracture, and joint disease by producing clear and detailed images, hence allowing an accurate diagnosis.
- Pediatric Imaging: The high-performance capacity of the STARNUKE HF300, with its diverse adjustable parameters, offers diagnostic pediatric imaging in safety and comfort for the patient, maintaining radiation exposure to a minimum.
