MODEL NAME: X-RAY INSPECTION 130KV TUBE WITH TDI
The 130 kV X-ray Inspection System w/ TDI: High-Precision Imaging for Industrial Applications
The 130 kV X-ray Inspection System integrated with an TDI Detector will meet even the most stringent industrial requirements and provide you with accurate and dependable imaging in a wide range of applications. The sturdy body is housing advanced technology that has turned this system to be an essential tool when quality control or detection of defects must be envisaged, and all these because it is capable of undertaking nondestructive tests at a very high degree of accuracy.
Key Features
1. High Voltage X-ray Tube for Versatility

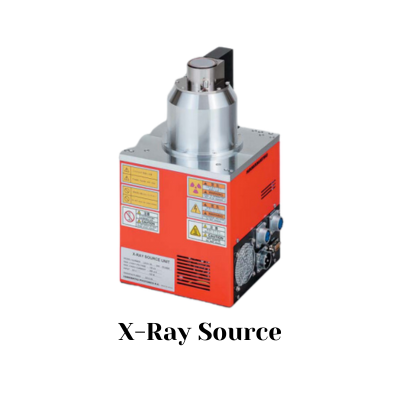

It is fitted with a 130 kV X-ray tube featuring high maximum operating voltage for quality images across a wide range of materials. It can achieve deep penetration even in dense or complex components, given this capability allows clear visualization of internal details related to major inspections.2. Efficient Power Consumption
Output power of 39 W. The system is optimized for powerful and consistent X-rays but without excessive energy consumption. This will make it very suitable for long-term industrial use where consistency in performance may be an important factor.3. TDI Detector for Superior Image Quality
With the addition of a TDI detector in this system, the imaging performance is enhanced through an increase in sensitivity and image resolution. In fact, the HD images this advanced technology produces can easily display minute defects like cracks, voids, or manufacturing defects in components.4. High Throughput for Stable Production
Engineered for stable production, the system boasts an impressive throughput of 300 parts per minute; it keeps pace with high-volume production lines. This capability makes sure that at no time does the inspection stage turn out to be a manufacturing bottleneck and allows efficiency without compromising on accuracy.5. Large, Sturdy Build
The machine measures 3890 mm (L) x 2220 mm (W) x 2500 mm (H) and weighs 5500 kg, making this X-ray inspection system very stable and durable. Its large structure provides the corresponding support for handling industrial-grade inspections while sustaining an allowance for precise imaging capabilities.
Technical Specifications
-Max Operating Voltage: 130 kV
-Power Output: 39 W
-Machine Dimension: 3890 mm (L) x 2220 mm (W) x 2500 mm (H)
-Weight: 5500 kg
-Stable Production Rate: 300 PPM
-Supply Voltage: 380 V
-Full Load Current: 50 A
Reliable and Energy-Efficient Design
This system is designed for industrial use, operating on an input voltage of 380 V and a full load current of 50 A. It is designed to provide consistent and dependable operation. Strong in its power, this X-ray inspection machine yet remains energy-efficient to ensure operations costs are at their lowest. The best part? Top-tier results are kept through and through within the process.
Applications
-Automobile Manufacturing: This would involve the X-ray inspection of engine parts and other important parts.
-Aerospace and Defense: Non-destructive testing of high-performance parts, such as turbines and landing gear.
-Electronics: Quality inspection of complex electronic products.
-Medical Device Manufacturing: Verification of the internal structure of devices and implants.
-General Manufacturing: Applications in mass production for quality assurance with defect-free products.
Why Choose the 130 kV X-ray Inspection System with TDI?
The TDI 130 kV X-ray Inspection System offers the right balance of high performance and precision for those industries that require a robust inspection solution to match their speed and accuracy. With its high operating voltage, sophisticated detector technology, and heavy-duty construction, it will be indispensable in ensuring product quality and safety and meeting high-volume production demands with regard to the system's throughput and efficiency.
Please do not hesitate to contact us directly for further information or to ask for a quote.
