Get the price and delivery time for 100 mA Mobile X Ray Machine STARNUKE-HF100 5 KW High Frequency. We deliver across India.

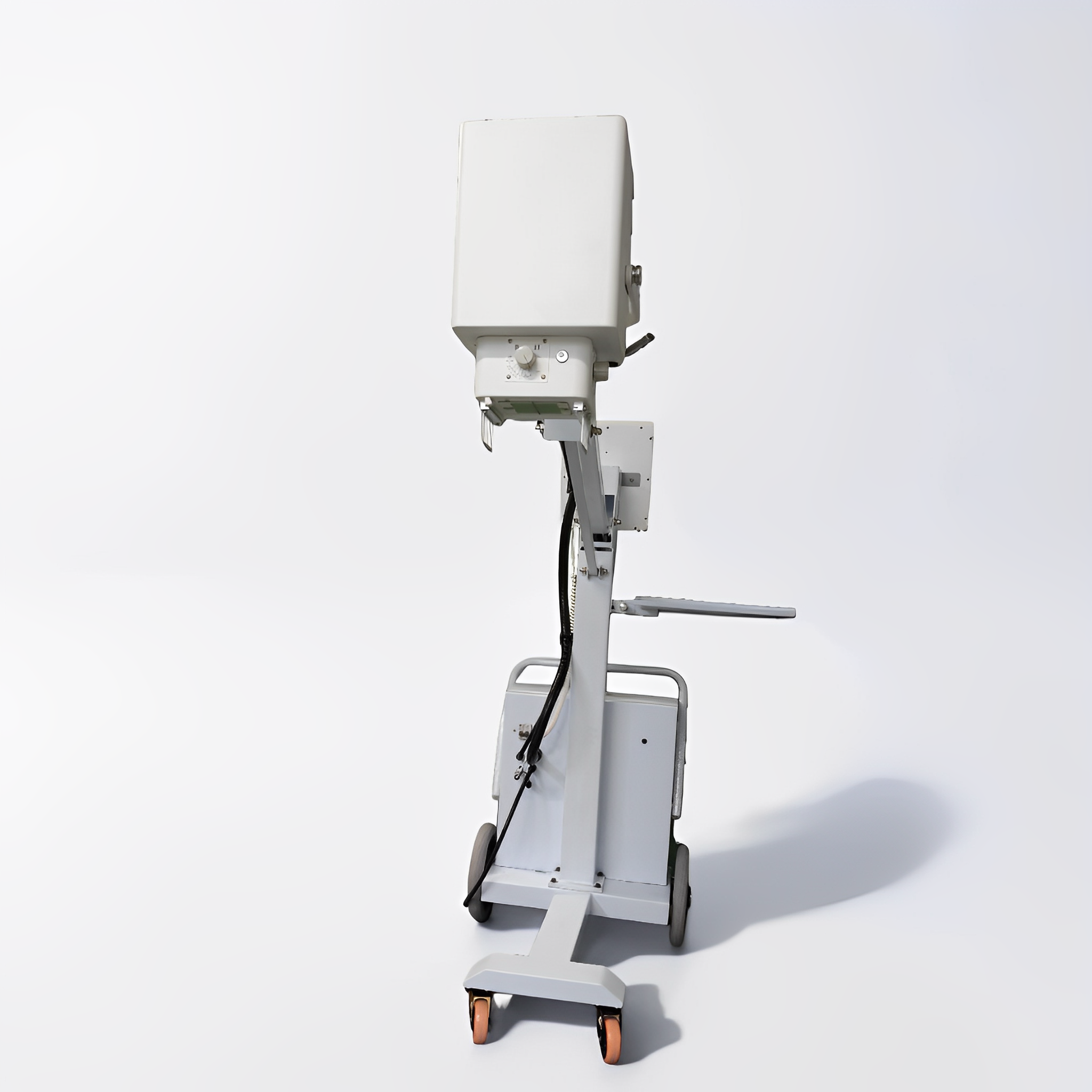

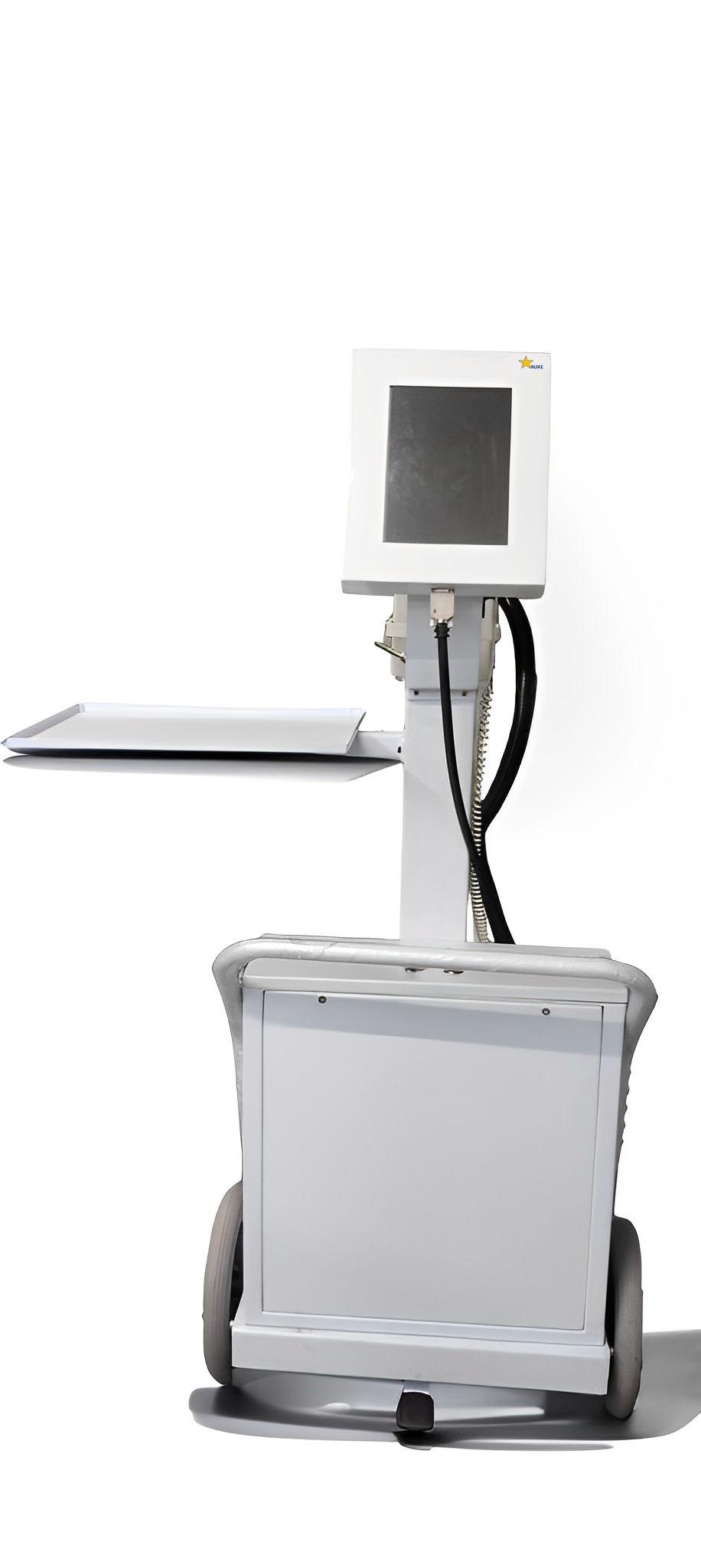

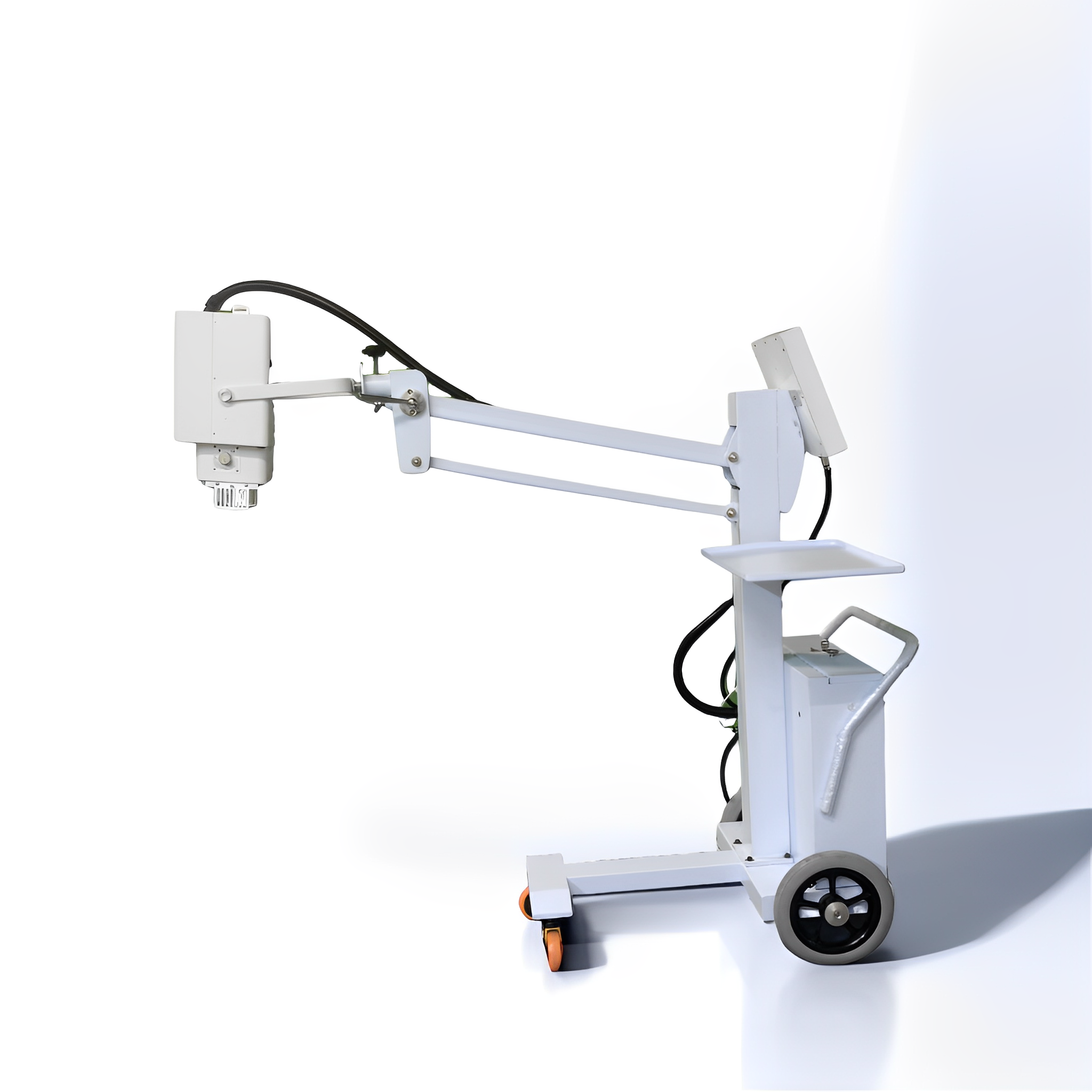

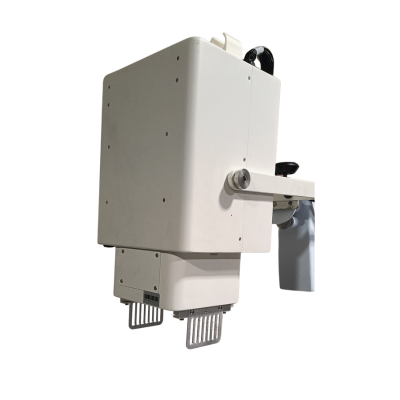

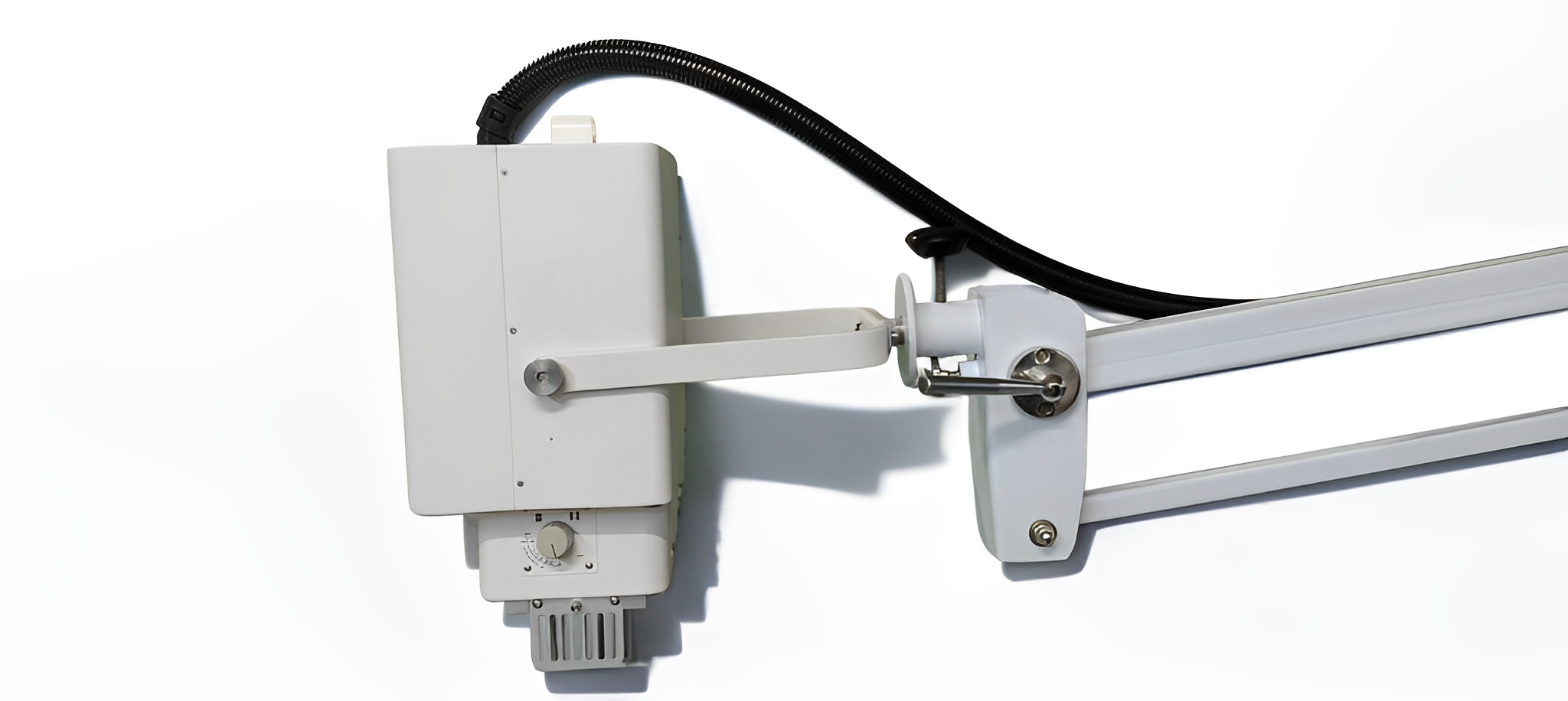

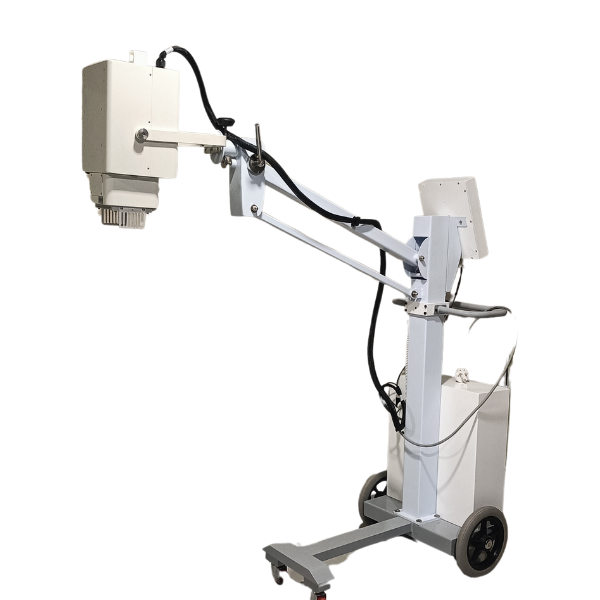

STARNUKE HF100 is a 100 mA high-frequency mobile X-ray machine with a 5.6 kW monoblock on a spring-balanced arm. Preset keys make routine examinations quick. It suits wards, ICUs, emergency rooms, operating theatres and clinics. It is AERB approved and made in India by STARNUKE.
Technical specifications
| Model | STARNUKE HF100 |
|---|---|
| Type | Mobile high-frequency X-ray |
| Rated power | 5.6 kW |
| Tube voltage | 40–125 kV |
| Tube current | 5–125 mA |
| Focal spot | 0.6 / 1.8 mm (small / large) |
| Power supply | Single phase 220 V AC |
| Stand | Mobile, spring-balanced arm |

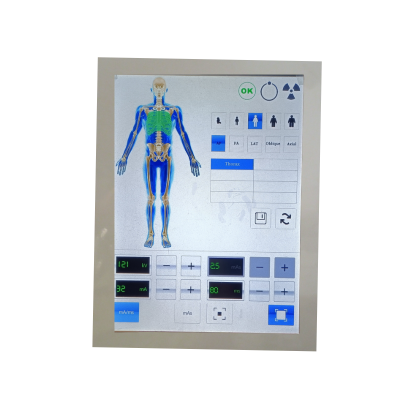

| Controls | Preset keys for quick selection |
| Approval | AERB approved |
| Made in | India (Jaipur, Rajasthan) |
Where it is used
- Radiography: chest, spine, skull, abdomen, pelvis and extremities.
- Bedside imaging: wards, ICUs, emergency rooms and operating theatres.
- Veterinary: also available as the HF100 veterinary version.
Film, CR or digital (DR)?
For digital images, see HF100 with DR. STARNUKE flat panel detectors 4343DIW (wireless) and 3543DI (wired) and the StarRayinView imaging software are CDSCO approved.
What you get from STARNUKE
- Delivery anywhere in India
- Installation and operator training
- Help with AERB registration and licensing for your facility
- AERB QA testing and commissioning by our AERB-certified RSOs
- After-sales service and spare parts from the manufacturer
Frequently asked questions
Is the HF100 AERB approved?
Yes. The HF100 is an AERB-approved X-ray machine, made in India by STARNUKE. Your facility also needs its own AERB registration; we help with that.
Does it need three-phase power?
No. It runs on single phase 220 V AC.
Can it be used in the operation theatre?
Yes, for radiographs during or after surgery. For live imaging (fluoroscopy) choose the STAR-C 5.0 C-arm.
What is the price of the HF100 in India?
The price depends on the configuration (with or without DR and accessories). Use the "Get price (India)" button on this page and our team will send a quotation.
Can the HF100 monoblock be supplied for OEM use?
Yes. The HF100 X-ray source is available for OEM supply. See OEM & Export.
