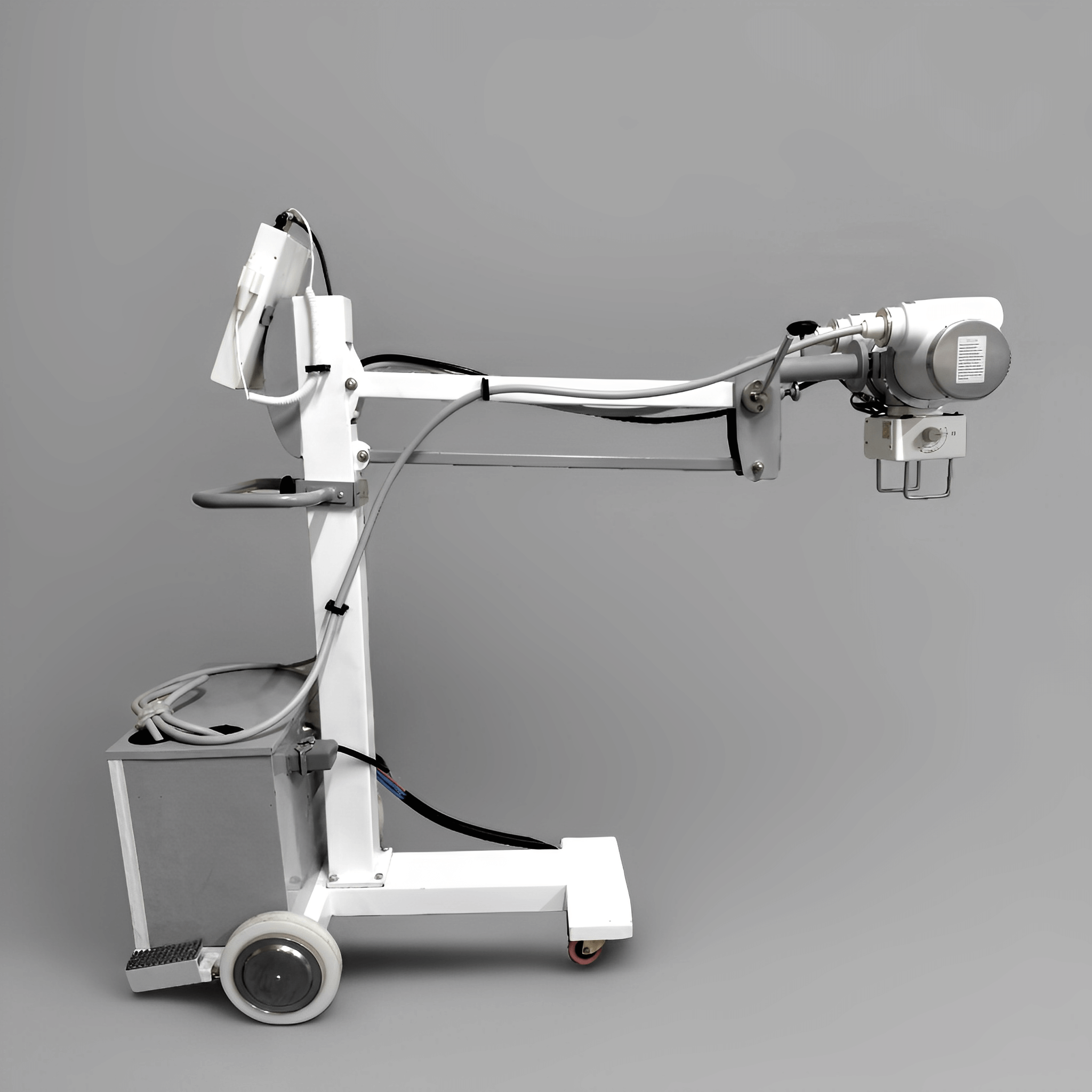

300mA High-Frequency Mobile Veterinary X-Ray Machine
The 300mA High-Frequency Mobile Veterinary X-Ray Machine is a cutting-edge diagnostic tool designed to meet the demanding needs of veterinary professionals. This mobile, high-frequency system provides superior imaging quality, allowing for efficient, accurate diagnoses for a wide range of animal care applications. Whether in the clinic, emergency, or field setting, this portable machine ensures high performance and reliability.
Key Features:
- Max Working Frequency: >/-200kHz, delivering high-resolution images with minimal exposure time.
- Single Phase/220V: Designed for easy setup with standard electrical configurations.
- Wide Frequency Range: 50/60Hz +/- 1Hz ensures stable operation, ideal for variable environments.
- Nominal Max Power: 32kW, ensuring powerful performance for rapid, efficient scans.
- KV Range: 40-125kV, providing flexibility for different animal sizes and diagnostic requirements.
- mA Range: 10-300mA, enabling precise control over radiation output for safe, effective imaging.
- mAs Range: 0.1-320mAs, offering versatility in adjusting exposure for a wide range of veterinary applications.
- Exposure Time Range: 10ms-10000ms, ensuring precise exposure for each animal and diagnostic situation.
- Max Filament Current: 6A, ensuring consistent, reliable imaging even in demanding environments.
