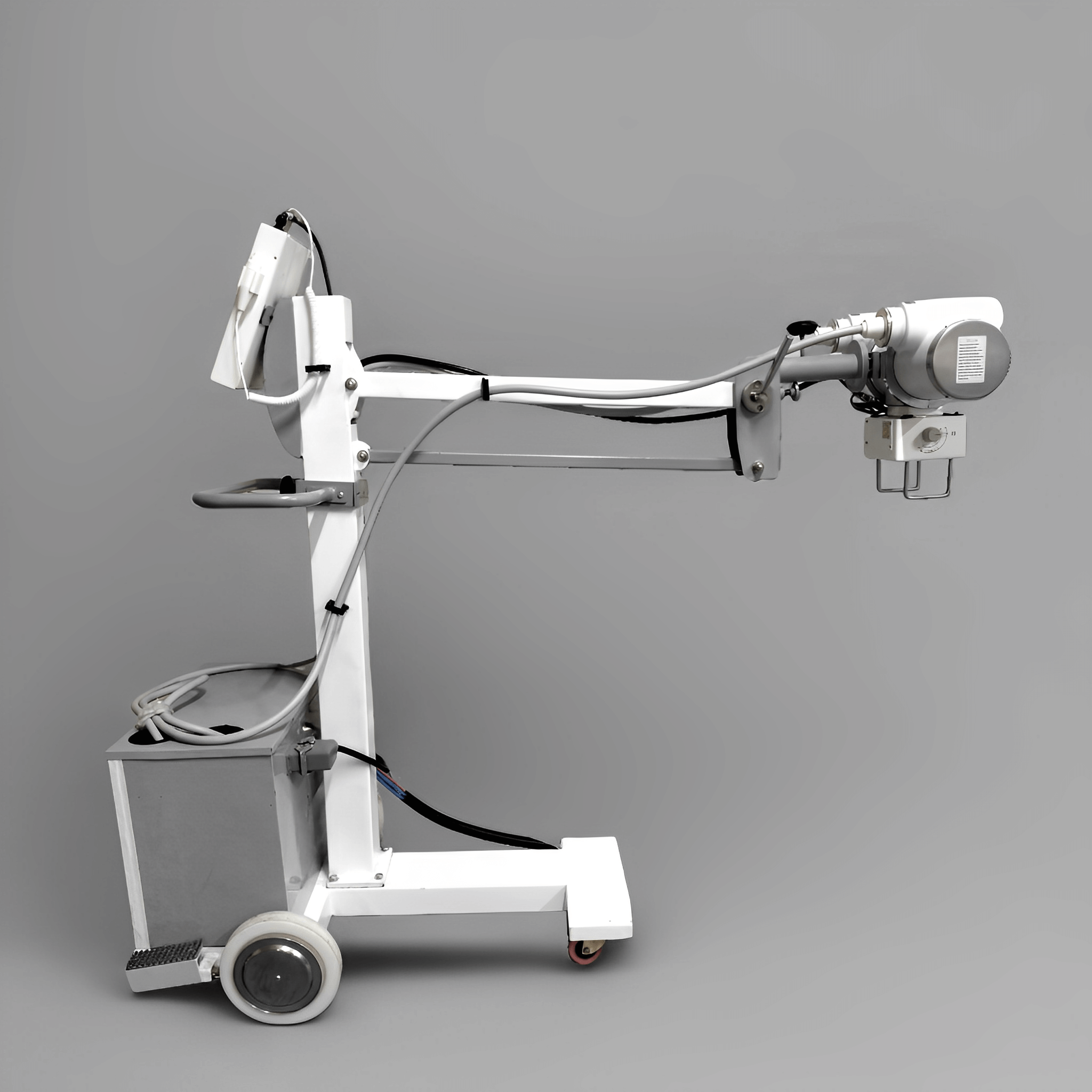

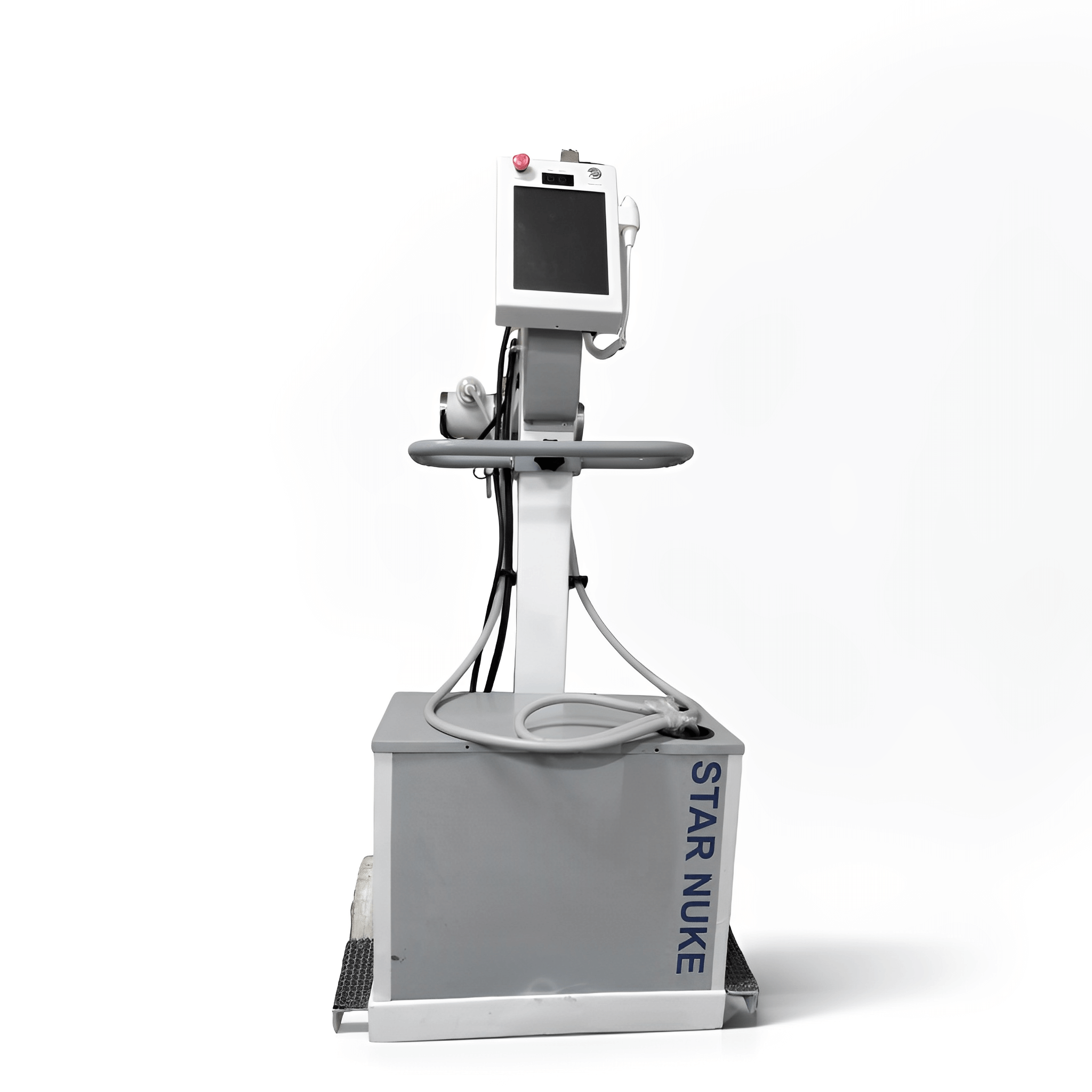

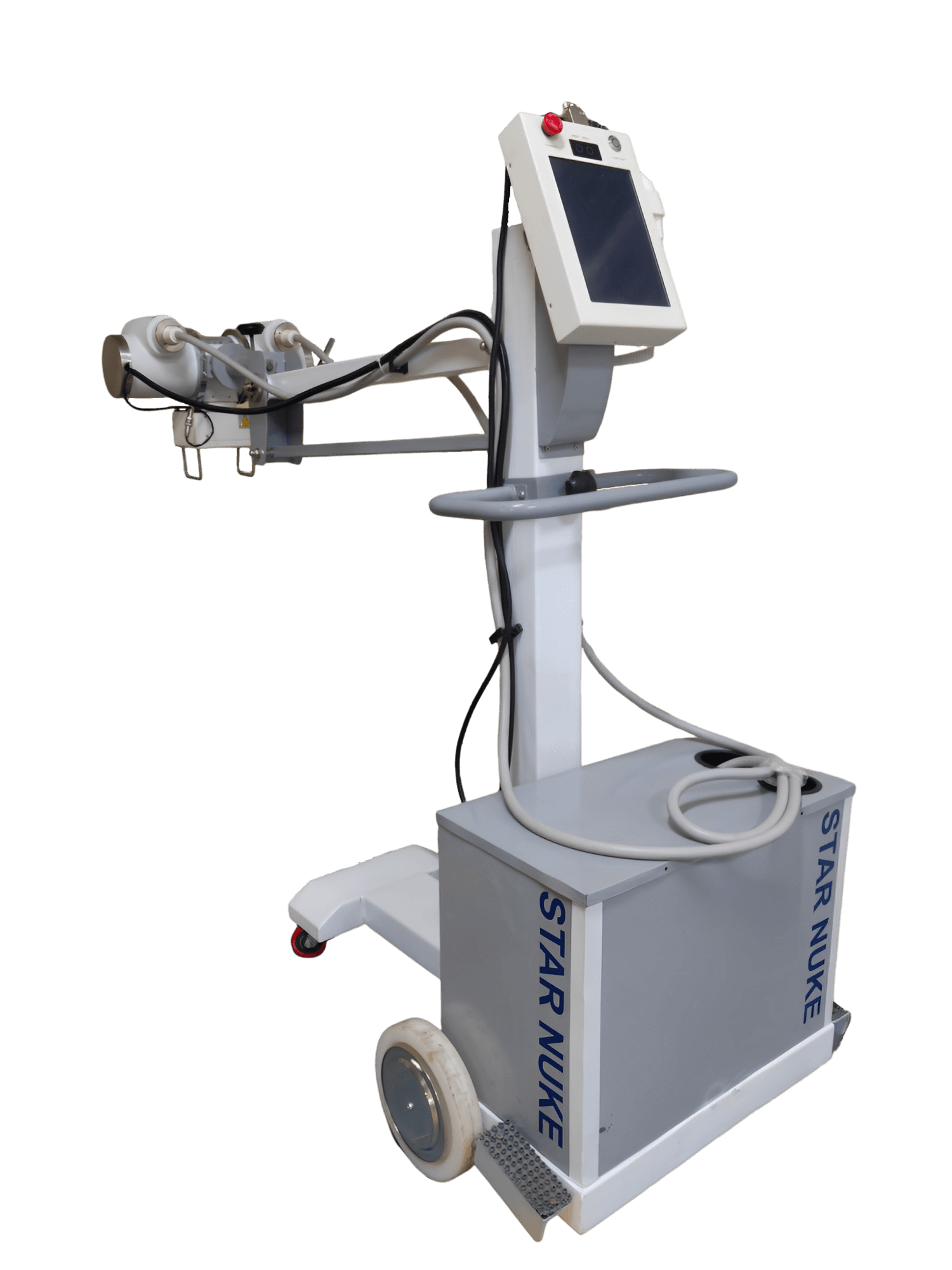

400mA High-Frequency Mobile Veterinary X-Ray Machine
The 400mA High-Frequency Mobile Veterinary X-Ray Machine is an advanced diagnostic tool designed to deliver high-quality imaging and maximum portability for veterinary practices. Perfect for both stationary clinics and mobile veterinary services, this state-of-the-art machine offers unparalleled flexibility, safety, and performance. Its cutting-edge technology ensures precise, high-resolution images with minimal radiation exposure, making it ideal for a wide range of veterinary applications, from routine exams to emergency diagnostics.
Key Features:
Max. Working Frequency: >/-200kHz – The high-frequency operation guarantees superior image quality, reduced exposure time, and clear diagnostics with minimal distortion, ensuring optimal results with every use.
Single Phase/220V: Easy setup with standard electrical requirements, making it simple to integrate this mobile X-ray system into any veterinary environment.
Frequency Range: 50/60Hz +/- 1Hz – Offers stable, consistent performance for precise imaging, perfect for varying environmental conditions.
Nominal Max. Power: 32kW – High power output for rapid and efficient imaging, providing faster diagnostic results with less waiting time.
KV Range: 40-125kV – Provides flexible control over the voltage for different animal sizes and diagnostic needs, ensuring optimal image clarity and contrast.
mA Range: 10-400mA – The versatile mA range allows precise adjustments to meet specific imaging requirements, making it suitable for animals of all sizes, from small pets to large animals.
mAs Range: 0.1-320mAs – Offers flexible exposure time adjustments, ensuring the right balance between image quality and radiation dose for safe and accurate imaging.
Exposure Time Range: 10ms-10000ms – The wide exposure time range offers exceptional adaptability for both fast and long exposures, making it perfect for various diagnostic procedures.
Max Filament Current: 6A – Ensures a consistent, reliable imaging process for superior results, even under demanding conditions.
