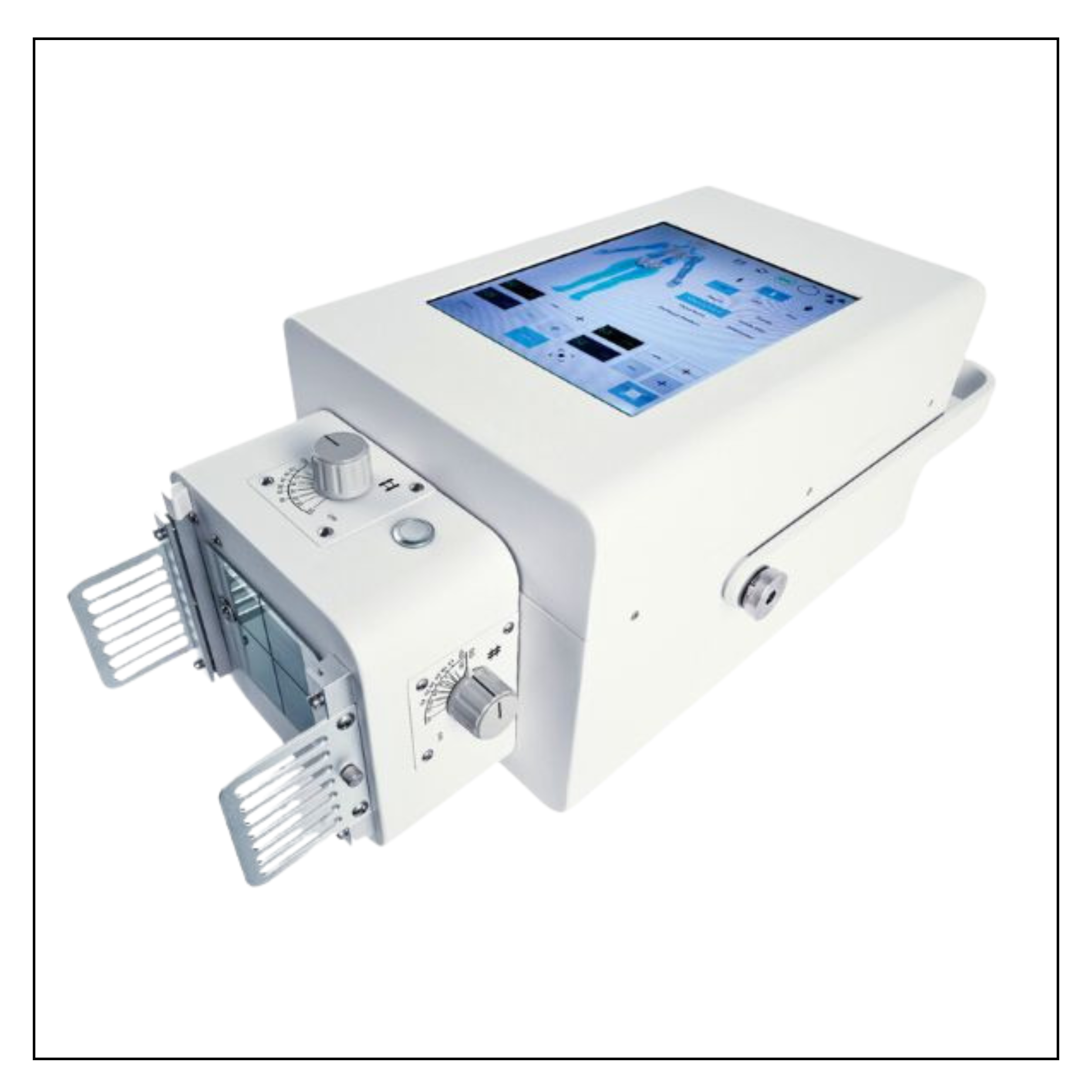

Smart Prima X: High-Class Portable X-Ray Machine
The Smart Prima X-ray machine is lightweight and portable, high in performance, representative of state-of-the-art developments in its feature set, strong technical specifications, and wide applicability, responding to the needs of both medical and veterinary professionals. This assures diagnoses of the highest class with maximum comfort. Be it in a hospital, clinic, or out in the field for veterinary services, Smart Prima will deliver results from imaging studies faster, more reliably, and accurately.
Key Features:
1. Portable and Light Weight Design:
Compact in size, the Smart Prima measures only 265 mm (L) × 240 mm (W) × 210 mm (H) and weighs merely 15 kg, which makes it easily portable. Thus, Smart Prima is ideal for all kinds of mobile radiology services or to send out to remote areas. The smart prima is ergonomically designed, keeping in mind that the medical professionals will have to move around with it. Thus, it guarantees comfort and ease of handling for the users.2. High-Output yet Precision Control:
It contains 5 kW of output power, with exposure kV ranging from 40 kV to 110 kV in steps of 1 kV. This gives great precision in the image, hence helping one get high diagnostic-quality images in your human patients or animals.3. Flexible Exposure Options:
Smart Prima has an exposure mA range of 10-100 mA and an exposure time range from 1 ms to 4000 ms. For the value of exposure mAs, it lies in the range from 0.1 to 200 mAs, allowing just the right amount of flexibility needed for the best radiographic imaging.4. X-Ray Focus Versatility:
Equipped with small and large X-ray focus options, Smart Prima promises high-resolution images to manage diagnostic challenges of all kinds, from soft tissue fine details up to bone imaging.5. Advanced Filtration for Sharp Images:
X-ray tube inherent filter 0.6 mmAl enhances the quality of the image by reducing useless radiation. Improved safety, therefore, gives tarter or more accurate results in the imaging.6. Remote Monitoring and Wireless Communication:
The Smart Prima also supports wireless communication for remote monitoring. It would be very useful if one were enabled to operate and control a device from a distance with the help of a radiologist or technician for enhancing safety and convenience during procedures.7. Long-lasting Battery Life:
The internal battery can maintain up to 200 exposures on one charge, thus enabling reliable running of the system during longer applications. Whether it is performing a series of examinations or doing mobile diagnostics, the battery of Smart Prima will always keep you ready.8. Soft-Switching Technology for Efficiency:
The device also integrates soft-switching techniques operating at up to 300 kHz switching frequency. This gives the highest energy efficiency in minimum heating, and prolongs machine life.9. User Customizable Interface
Smart Prima is designed to possess specific user interfaces for intended use, one for human applications and another for veterinary applications. The APR data configuration is such that it can easily be tailored for the specific parts of the body under examination, hence ensuring optimization in settings for each and every examination.10. Dual Power Supply Options:
Smart Prima can operate both with a battery and line power supply to function round the clock under all conditions. It offers you good performance without interruption onsite or in the clinic.
Applications:
- Human Radiography:
Smart Prima is intended for use in all clinical settings, ranging from hospitals and urgent care centers to outpatient clinics. Its precision and power enable faster imaging in everything from the routine chest X-ray to the more specialized requirements of diagnosed conditions.- Veterinary Radiography:
Its veterinary interface allows customization, and it's highly suitable for animal hospitals and mobile veterinary practices. The Smart Prima features clear imaging, from the smallest to the largest size in pets and large animals.- Portable Diagnostics:
The Smart Prima offers portability with its wireless design and hence is suitable for mobile diagnostic services. Owing to these advantages, it has turned out to be highly essential for home health care, field clinics, and emergency medical situations.
The solution for powering diagnostic imaging today with Smart Prima rests on being the ultimate in portability for an X-ray, handheld.
